Lenses
Click below for more information. Please note we are also able to supply branded lenses by BBGR, Carl Zeiss Vision, Essilor, Hoya, Kodak, Nikon, Rodenstock, Seiko, Shamir and Tokai.
Click below for more information. Please note we are also able to supply branded lenses by BBGR, Carl Zeiss Vision, Essilor, Hoya, Kodak, Nikon, Rodenstock, Seiko, Shamir and Tokai.
Our flagship lens, Define, combines the most sophisticated Camber technology with a modern freeform progressive lens design. This incorporates a flatter base curve for distance vision and a variable base curve throughout the lens, the front surface utilises a new concept which involves the 'stacking of different spheres' to maximise optical accuracy and aesthetics.
Camber technology combines complex variable curves on both surfaces of the lens to provide exceptional clarity to the wearer's vision. The result is a continuously changing curvature between the front and rear surfaces expanding the reading zone and vastly improving peripheral vision. The technology fine tunes or compensates the supplied RX to give optimum performance at the patient's unique position of wear. When wearing Define lenses, the wearer also benefits from superior near vision performance and better cosmetic appearance.
The RX design computation is further enhanced by a complete set of individualisation parameters that take into consideration the unique attributes of the frame and the preferences of the wearer. The result is a finished lens that is comprehensively customised for each individual patient.
Add 0.50 - 4.50, inset 0 - 4mm, heights suitable from 14mm
Material | Sph | Cyl | Sph |
---|---|---|---|
1.5 CR39 Hard | +6 | 4 | -11 |
1.5 Transitions | +6 | 4 | -11 |
1.5 Polarised | +6 | 4 | -11 |
1.53 Trivex | +6 | 4 | -10 |
1.53 Trivex Trans VII | +6 | 4 | -10 |
1.6 Hi Index | +7 | 4 | -11 |
1.6 Transitions VII | +7 | 4 | -11 |
1.6 Polarised | +7 | 4 | -11 |
1.67 Hi Index | +7 | 5 | -11 |
1.67 Transitions VII | +7 | 4 | -11 |
1.67 Polarised | +7 | 5 | -11 |
Integrity is an extremely well balanced and versatile progressive design - the result of extraordinary optical architecture that eliminates abberations to improve peripheral vision. The lens has been designed using modern freeform progressive lens technology. The wearer experiences a combination fo quality and comfort - developed to provide superior performance at any distance.
It is available in two dispensing options.
Both options include four corridor types and can be fit from 14mm above lower rim. We will select the correct corridor for you and supply accordingly.
The Integrity lens comes with a 60-day non tolerance guarantee.
Add 0.75 - 3.50, heights suitable from 14mm
Material | Sph | Cyl | Sph |
---|---|---|---|
1.5 CR39 Hard | +9 | 6 | -10 |
1.5 Transitions VII / Xtractive | +6 | 6 | -10 |
1.5 Polarised | +7 | 6 | -9 |
1.5 Drivewear | +6 | 6 | -8 |
1.53 Trivex | +7 | 6 | -10 |
1.53 Trivex Trans VII / Xtractive | +7 | 6 | -9 |
1.6 Hi Index | +7 | 6 | -10 |
1.6 Trans VII / Xtractive | +7 | 6 | -10 |
1.6 Polarised | +8 | 6 | -6 |
1.67 Hi Index | +10 | 6 | -12 |
1.67 Trans VII Xtractive | +8 | 6 | -12 |
1.67 Polarised | +8 | 6 | -9 |
1.74 Hi Index | +9 | 6 | -17 |
1.74 Transitions VII | +10 | 6 | -15 |
Being digitally surfaced, the Odyssey digital varifocal lens has a far higher accuracy of prescription than traditionally made lenses. Not only is the prescription accurate to within 0.01 dioptre, but the advanced surfacing methods used to create an Odyssey lens offer a more precise curve than traditional surfacing methods.
A customised surface design allows for greatly reduced distortion by tailoring to the differences between the eyes. Most of the surface astigmatism is pushed into areas of the lens that will be edged away, providing the patient a lens with the largest possible area of clear vision.
The Odyssey is as simple to dispense as traditional varifocal lenses - there are no complicated measurements to be taken. All that we require are the patients' monocular PDs, heights and a frame or lens trace. The Odyssey is available in 3 corridor lengths that have minimum fitting heights of 14, 16 and 18mm. We will automatically select the optimal corridor based on the information you supply, but if you prefer, you may specify which corridor you wish to use.
Every Odyssey lens comes with a 60-day non tolerance guarantee.
Add 0.75 - 3.50, heights suitable from 14mm
Material | Sph | Cyl | Sph |
---|---|---|---|
1.5 CR39 Hard | +8 | 4 | -10 |
1.5 Transitions | +6 | 4 | -9 |
1.5 Polarised | +6 | 4 | -5 |
1.5 Drivewear | +6 | 4 | -8 |
1.53 Trivex | +6 | 4 | -9 |
1.53 Trivex Trans VII | +6 | 4 | -8 |
1.6 Hi Index | +7 | 4 | -11 |
1.6 Transitions VII | +7 | 4 | -11 |
1.6 Polarised | +7 | 4 | -9 |
1.67 Hi Index | +10 | 5 | -11 |
1.67 Transitions VII | +8 | 5 | -11 |
1.74 Hi Index | +11 | 5 | -13 |
New Origin is a digitally surfaced progressive that is ideal for customers with a limited budget available or first time wearers. It is available in 2 corridor lengths that are designed to be fit from 14mm and 18mm.
Every New Origin lens comes with a 60-day non tolerance guarantee.
Add 1.00 - 3.50, heights suitable from 14mm
Material | Sph | Cyl | Sph |
---|---|---|---|
1.5 CR39 uncoated | +6 | 4 | -8 |
1.5 CR39 hard | +6 | 4 | -8 |
1.5 Transitions VI | +6 | 4 | -8 |
1.56 Photomatic | +6 | 4 | -6 |
1.5 Polarised | +6 | 4 | -8 |
1.6 Hi Index | +7 | 4 | -11 |
1.6 Transitions VII | +7 | 4 | -11 |
1.67 Hi Index | +8 | 4 | -11 |
1.67 Transitions VII | +8 | 4 | -11 |
1.74 Hi Index | +8 | 4 | -11 |

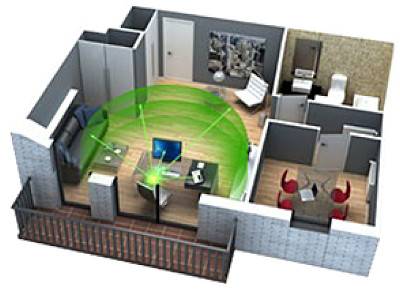

Vision suitable for distance/range | From 0.33m to either 1.3m, 2m or 4m |
Minimum recommended heights | 20mm |
Minimum recommended distance above fitting cross | 8mm |
Addition | +0.75 to +3.50 |
Centration | Cross on centre of pupil at distance PD (as varifocal) |
Suitability | Lenses suitable for office environment Not to be used for driving |
Transitions available on request / POA.
Other notes about dispensing / tips - Consider that the deeper the field of distance vision, the greater the compromise of lens area in near vision. The lens will perform better at close and intermediate range with reduced distance options.
Field Depth 1.3m, 2m and 4m available
Material | Sph | Cyl | Sph |
---|---|---|---|
1.5 CR39 Uncoated | +9 | 6 | -10 |
1.5 CR39 Hard | +9 | 6 | -10 |
1.5 Transitions VI | +7 | 6 | -6 |
1.53 Trivex | +7 | 6 | -10 |
1.6 Hi Index | +7 | 6 | -10 |
1.6 Transitions VII | +7 | 6 | -6 |
1.67 Hi Index | +7 | 6 | -10 |
Degression from 0.25 - 1.75 as required
Material | Sph | Cyl | Sph |
---|---|---|---|
1.5 CR39 Uncoated | +6 | 4 | -6 |
1.5 CR39 Hard | +6 | 4 | -6 |
1.5 Transitions VI | +6 | 4 | -8 |
1.53 Trivex | +6 | 4 | -6 |
1.56 Photochromic | +4 | 4 | -4 |
1.6 Hi Index | +5 | 4 | -6 |
1.6 Transitions VII | +6 | 4 | -6 |
1.67 Hi Index | +6 | 4 | -6 |
1.67 Transitions VII | +6 | 4 | -6 |
1.74 Hi Index | +6 | 4 | -6 |
The Focus Classic Range is a great value service aimed at customers requiring basic single vision lenses at low cost.
Material | Coating | Blank | Sph | Cyl | Sph |
---|---|---|---|---|---|
1.5 | Uncoated | 75 | +4.00 | 2.00 | -4.00 |
65/70 | +6.00 | 3.00 | -7.00 | ||
55/60 | +6.00 | 2.00 | 0.00 | ||
Hardcoat | 75 | +4.00 | 2.00 | -4.00 | |
65/70 | +6.00 | 3.00 | -7.00 | ||
55/60 | +6.00 | 2.00 | 0.00 | ||
MAR | 65/70 | +6.00 | 2.00 | -6.00 | |
55/60 | +6.00 | 2.00 | 0.00 | ||
Supreme | 65/70 | +6.00 | 2.00 | -6.00 | |
1.53 | Hardcoat | 65/70 | +6.00 | 2.00 | -6.00 |
MAR | 65/70 | +6.00 | 4.00 | -8.00 | |
1.55 Photo | Hardcoat | 65/70 | +4.00 | 2.00 | -4.00 |
MAR | 65/70 | +4.00 | 2.00 | -4.00 | |
1.59 | Hardcoat | 65/75 | +6.00 | 2.00 | -6.00 |
65/70 | 0.00 | 4.00 | -10.00 | ||
MAR | 65/70 | +6.00 | 4.00 | -8.00 | |
1.6 | MAR | 65/70 | +6.00 | 2.00 | -8.00 |
65/75 | +6.00 | 4.00 | -8.00 | ||
Supreme | 65/70 | +6.00 | 3.00 | -7.00 | |
1.67 AS | MAR | 65/75 | +6.00 | 4.00 | -10.00 |
Supreme | 65/75 | +6.00 | 4.00 | -10.00 | |
1.74 AS | Supreme | 65/75 | -2.00 | 4.00 | -13.00 |
All frame types are catered for in the Focus Classic Range, divided into full-frame, nylon supra and rimless categories, with a separate glazing charge for each. On our pricelist, the glazing charges are listed next to the lens types so you can easily calculate the cost of each job. Furthermore, if the completed job isn't dispatched within four days, it's free! If you do not have a pricelist, please contact us.
Certain restrictions apply. Please see the full terms and conditions here.
In addition to the Focus Classic Range we also provide premium stock lenses under our own brand, which are available with the same coatings as our flagship varifocals.
Material | Coating | Blank | Sph | Cyl | Sph |
---|---|---|---|---|---|
1.5 CR39 | MAX | 65/70 | +4.00 | 2.00 | -4.00 |
MAX UV | 65/70 | +4.00 | 2.00 | -4.00 | |
Blue Resist | 65/70 | +4.00 | 2.00 | -4.00 | |
1.6 | MAX | 65/75 | +4.00 | 2.00 | -6.00 |
MAX UV | 65/75 | +4.00 | 2.00 | -6.00 | |
Blue Resist | 65/75 | +4.00 | 2.00 | -6.00 | |
1.67 AS | MAX | 65/75 | +6.00 | 2.00 | -10.00 |
MAX UV | 65/75 | +6.00 | 2.00 | -10.00 |
Utilising the latest in back surface freeform technology, the Ultimate single vision lens provides superior prescription accuracy not only at the optical center, but across the entire lens.
Ultimate single vision lens is up to 12% thinner and 20% flatter than conventional single vision lenses, offering patients a lighter, more aesthetically pleasing pair of spectacles.
The Supreme is an oleophobic MAR coat that is resistant to grease and dirt whilst being easy to clean, meaning that lenses treated with it stay cleaner for longer, reducing the chance of scratches appearing. Every lens with a Supreme coating comes with an industry-standard 2 year guarantee against manufacturing defects.
Dispensing an Ultimate lens is simple - all that is needed are the monocular PDs and fitting heights.
All lenses available with hardcoat, Sharp (standard MAR) or Supreme (Oleophobic MAR). Uncoated only available on standard 1.5 lenses.
Transitions available in Grey, Brown, Green and XTRActive Grey.
Material | Sph | Cyl | Sph |
---|---|---|---|
1.50 | -10.00 | 4.00 | +8.00 |
1.50 Polarised | -5.00 | 4.00 | +6.25 |
1.50 Transitions | -9.00 | 4.00 | +6.00 |
1.50 DriveWear | -8.00 | 4.00 | +6.25 |
1.53 Trivex | -9.50 | 4.00 | +6.00 |
1.53 Trivex Transitions | -8.50 | 4.00 | +6.00 |
1.60 | -11.00 | 4.00 | +7.25 |
1.60 Polarised | -9.00 | 4.00 | +7.50 |
1.60 Transitions | -11.00 | 4.00 | +7.25 |
1.67 | -11.00 | 5.00 | +10.00 |
1.67 Transitions | -11.00 | 5.00 | +8.00 |
1.74 | -13.00 | 5.00 | +11.00 |
Our standard surfaced single vision lenses are available in a wide range of materials and powers. Coatings listed in the table below are included with the lens as standard, but all lenses can be upgraded to various MAR coatings upon request.
Material | Coating | Sph | Cyl | Sph |
---|---|---|---|---|
1.5 CR39 | Uncoated | +10.00 | 4.00 | -10.00 |
1.5 CR39 Transitions VII | Hardcoat | +7.00 | 4.00 | -10.00 |
1.5 Polarised | Hardcoat | +6.00 | 4.00 | -8.00 |
1.5 Drivewear | Hardcoat | +6.00 | 4.00 | -6.00 |
1.53 Trivex | Hardcoat | +7.00 | 4.00 | -6.00 |
1.53 Trivex Transitions VII | Hardcoat | +7.00 | 4.00 | -10.00 |
1.55 Photochromic | Hardcoat | +7.00 | 4.00 | -8.00 |
1.59 Poly | Hardcoat | +7.00 | 4.00 | -6.00 |
1.59 Poly Transitions VII | Hardcoat | +6.00 | 4.00 | -10.00 |
1.6 Hi Index | Hardcoat | +8.00 | 4.00 | -8.00 |
1.6 Hi Index Transitions VII | Hardcoat | +8.00 | 4.00 | -10.00 |
1.6 Hi Index Polarised | Hardcoat | +7.50 | 4.00 | -8.00 |
1.67 Aspheric | Hardcoat | +8.00 | 4.00 | -10.00 |
1.67 Aspheric Transitions VII | Hardcoat | +8.00 | 4.00 | -10.00 |
1.67 Aspheric Polarised | Hardcoat | +8.00 | 4.00 | -10.00 |
1.74 Aspheric | Hardcoat | +10.00 | 4.00 | -14.00 |
1.74 Aspheric Transitions VII | Hardcoat | +8.00 | 4.00 | -10.00 |
Our bifocals are available in a wide range of seg styles, materials and powers. Coatings listed in the table below are included with the lens as standard, but all lenses can be upgraded to various MAR coatings upon request.
Seg Type | Material | Coating | Sph | Cyl | Sph |
---|---|---|---|---|---|
D25 | 1.5 CR39 | Uncoated | +6.00 | 4.00 | -6.00 |
D28 | 1.5 CR39 | Uncoated | +6.00 | 4.00 | -6.00 |
1.5 CR39 Transitions | Hardcoat | +6.00 | 4.00 | -6.00 | |
1.5 CR39 Polarised | Hardcoat | +5.00 | 4.00 | -6.00 | |
1.53 Trivex | Hardcoat | +6.00 | 4.00 | -6.00 | |
1.53 Trivex Transitions | Hardcoat | +6.00 | 4.00 | -6.00 | |
1.55 Hi Index Sunsensor | Hardcoat | +6.00 | 4.00 | -6.00 | |
1.55 Hi Index Photochromic | Hardcoat | +6.00 | 4.00 | -6.00 | |
1.59 Poly | Hardcoat | +6.00 | 4.00 | -6.00 | |
1.59 Poly Life Rx | Hardcoat | +5.00 | 4.00 | -6.00 | |
1.6 Hi Index | Hardcoat | +7.00 | 4.00 | -7.00 | |
1.67 Hi Index | Hardcoat | +6.00 | 4.00 | -15.00 | |
D35 | 1.5 CR39 | Uncoated | +6.00 | 4.00 | -6.00 |
1.5 CR39 Transitions | Hardcoat | +6.00 | 4.00 | -6.00 | |
1.5 CR39 Polarised | Hardcoat | +5.50 | 4.00 | -6.00 | |
1.59 Poly | Hardcoat | +6.00 | 4.00 | -6.00 | |
1.6 Hi Index | Hardcoat | +6.00 | 4.00 | -6.00 | |
D45 | 1.5 CR39 | Uncoated | +6.00 | 4.00 | -6.00 |
C28 | 1.5 CR39 | Uncoated | +6.00 | 4.00 | -6.00 |
1.6 Hi Index | Hardcoat | +6.00 | 4.00 | -7.00 | |
1.67 Hi Index | Hardcoat | +6.00 | 4.00 | -15.00 | |
1.74 Hi Index | Hardcoat | +8.00 | 4.00 | -12.00 | |
R22 | 1.5 CR39 | Uncoated | +6.00 | 4.00 | -6.00 |
R24 | 1.5 CR39 | Uncoated | +6.00 | 4.00 | -6.00 |
1.5 CR39 Transitions | Hardcoat | +5.50 | 4.00 | -6.00 | |
R28 | 1.5 CR39 | Uncoated | +6.00 | 4.00 | -6.00 |
R38 | 1.5 CR39 | Uncoated | +6.00 | 4.00 | -6.00 |
R45 | 1.5 CR39 | Uncoated | +6.00 | 4.00 | -6.00 |
E Line / 68mm | 1.5 CR39 | Uncoated | +6.00 | 4.00 | -6.00 |
Temporal Engraving | ||||||||
---|---|---|---|---|---|---|---|---|
Corridor | Min Height | Nasal Engraving | 1.5 | 1.53 | 1.56 | 1.6 | 1.67 | 1.74 |
13 | 15 | NOR3 | 5 | ✘ | 56 | 6 | 7 | ✘ |
15 | 18 | NOR5 | 5 | ✘ | 56 | 6 | 7 | ✘ |
16 | 19 | NOR6 | 5 | ✘ | 56 | 6 | 7 | ✘ |
17 | 20 | NOR7 | 5 | ✘ | 56 | 6 | 7 | ✘ |
18 | 21 | NOR8 | 5 | ✘ | 56 | 6 | 7 | ✘ |
Temporal Engraving | ||||||||
---|---|---|---|---|---|---|---|---|
Corridor | Min Height | Nasal Engraving | 1.5 | 1.53 | 1.56 | 1.6 | 1.67 | 1.74 |
12 | 14 | IEN2 | 5 | t | ✘ | 6 | 7 | 4 |
14 | 17 | IEN4 | 5 | t | ✘ | 6 | 7 | 4 |
16 | 19 | IEN6 | 5 | t | ✘ | 6 | 7 | 4 |
18 | 21 | IEN8 | 5 | t | ✘ | 6 | 7 | 4 |
Temporal Engraving | ||||||||
---|---|---|---|---|---|---|---|---|
Corridor | Min Height | Nasal Engraving | 1.5 | 1.53 | 1.56 | 1.6 | 1.67 | 1.74 |
12 | 14 | IEX2 | 5 | t | ✘ | 6 | 7 | 4 |
14 | 17 | IEX4 | 5 | t | ✘ | 6 | 7 | 4 |
16 | 19 | IEX6 | 5 | t | ✘ | 6 | 7 | 4 |
18 | 21 | IEX8 | 5 | t | ✘ | 6 | 7 | 4 |
Temporal Engraving | ||||||||
---|---|---|---|---|---|---|---|---|
Corridor | Min Height | Nasal Engraving | 1.5 | 1.53 | 1.56 | 1.6 | 1.67 | 1.74 |
12 | 14 | DEF2 | 5 | t | ✘ | 6 | 7 | ✘ |
14 | 17 | DEF4 | 5 | t | ✘ | 6 | 7 | ✘ |
16 | 19 | DEF6 | 5 | t | ✘ | 6 | 7 | ✘ |
18 | 21 | DEF8 | 5 | t | ✘ | 6 | 7 | ✘ |
Temporal Engraving | ||||||||
---|---|---|---|---|---|---|---|---|
Corridor | Min Height | Nasal Engraving | 1.5 | 1.53 | 1.56 | 1.6 | 1.67 | 1.74 |
12 | 14 | DFA2 | 5 | t | ✘ | 6 | 7 | ✘ |
14 | 17 | DFA4 | 5 | t | ✘ | 6 | 7 | ✘ |
16 | 19 | DFA6 | 5 | t | ✘ | 6 | 7 | ✘ |
18 | 21 | DFA8 | 5 | t | ✘ | 6 | 7 | ✘ |

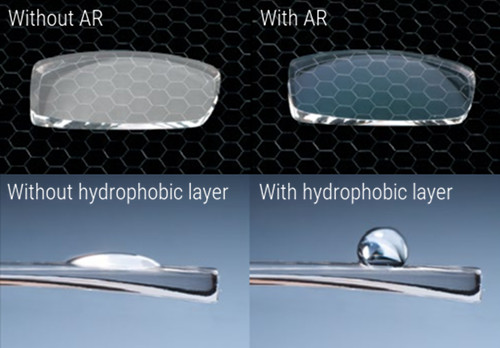

We offer several options of coating, each with their own unique qualities and benefits.
Lens Type | Sharp | Supreme | MAX | MAX UV | Blue Resist | EXPRESS SERVICE |
---|---|---|---|---|---|---|
SV RX | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
SV RX Ultimate | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Bifocal | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Office | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Enhance | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
New Origin | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Odyssey | ✔ | ✔ | ✘ | ✘ | ✘ | ✘ |
Integrity | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Define | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
All coatings are applied to the lens surface to reduce reflection, improving vision by allowing more light to transmit through the lens. They comprise of several adhesive and reflective layers combined together so that the wearer perceives clearer vision and reduce reflection. Benefits are maximised with night vision and VDU or tablet use.
All coatings include a 2 year warranty against manufacturer faults and breakdowns. In addition to this, MAX and MAX UV include a 'no questions' 2 year anti scratch guarantee.
